Parrot ANAFI UKR XLR
Blue UAS & NDAA Compliant
Extended Flight Time
Hardened Cybersecurity
Engineered to Provide Tactical Persistence for Defence Operators
The Extra Long Range (XLR) variant of the ANAFI UKR range delivers industry-leading endurance for sustained Intelligence, Surveillance, and Reconnaissance (ISR) missions in the most demanding environments. Optimized for high-intensity, multi-domain operations, the XLR model combines a massive 70-minute flight time with an extended 40 km operational reach, providing elite situational awareness across the battlespace. Built on a sovereign and battle-hardened architecture, it is engineered to maintain a robust, encrypted data link even in the most contested environments and electronic warfare scenarios.
70-Minute Flight Time
Powered by the high-density 20,200 mAh XLR Battery, for extended missions and maximum endurance.
40km Operational Range
Extended reach for long-range ISR and border security missions.
Multi-Secure Link
5G, Starlink, MARS Frequency Hopping, and LoRa backup.
Key Features
Optical Navigation
Advanced visual odometry for high-performance autonomous flight in GNSS-denied or contested environments.

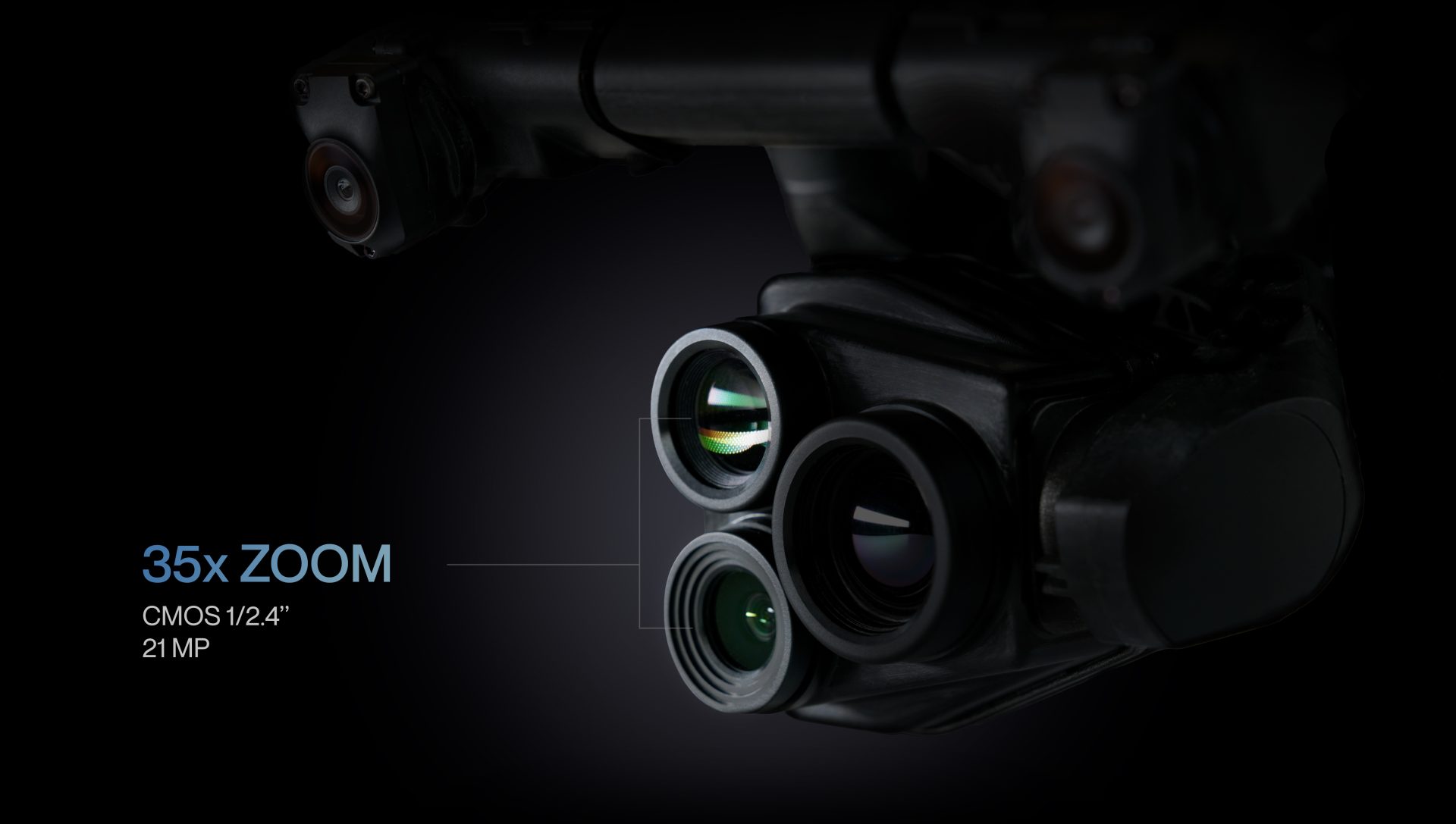

Zoom Optics
Features a powerful 35x EO zoom system paired with a FLIR Boson 640 thermographic camera for precision reconnaissance.

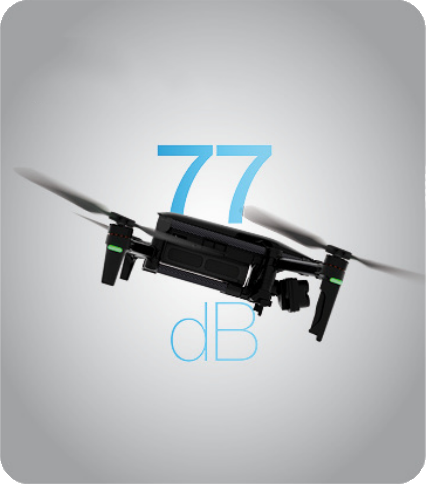

Ultra low Acoustic Signature
Designed for maximum discretion with a specialized low-noise profile for sensitive intelligence missions.
Extended Autonomy
Specifically optimized for the XLR battery to deliver up to 70 minutes of flight time and a 40 km range.
Cybersecurity by Design
A secure-by-design architecture featuring AES-256 encryption at both the packet and radio levels.

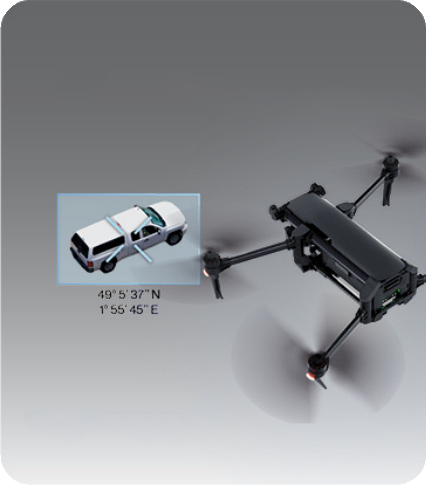

Cursor On Target
Supports tactical data exchange with MGRS coordinates and CoT for seamless integration with battle management systems.

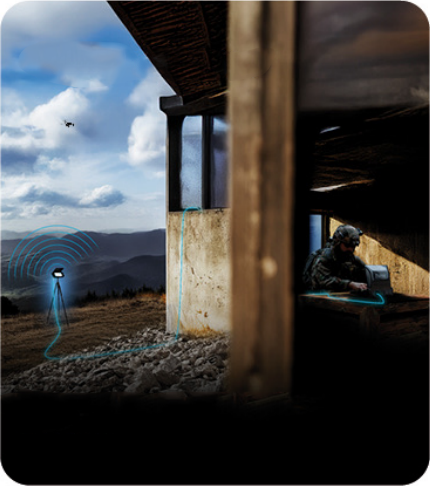

Remote Antenna
Compatible with MARS Ranger, MARS Orbiter, or an additional Skycontroller UKR to extend the operational radio horizon.
Software Included
Comes standard with FreeFlight 8, Parrot FlightCharts, Map Generator, and the ANAFI UKR Simulator.
Parrot SDK 8
An open, interoperability-first architecture allowing for deep custom integration and developer flexibility.
Long-Range Tactical Resilience: The UKR XLR Ecosystem
The ANAFI UKR XLR is the high-endurance powerhouse of the sovereign UKR range, engineered for extended-reach ISR missions. Its Multiple Secure Radio Architecture is built for maximum range and resilience, utilizing the MARS frequency hopping radio alongside 5G for unlimited range and an encrypted LoRa backup. This variant is fully optimized for the XLR Smart Battery, enabling a massive 70-minute flight time and 40 km operational range. Managed by the tactical FreeFlight 8 interface and the rugged Skycontroller UKR, the XLR model provides a robust, AES-256 encrypted link for precision control over vast distances in the most challenging environments.
Technical Comparison
| ANAFI UKR GOV Public Safety and Government | ANAFI UKR XLR Defence | |
|---|---|---|
| Radio Protocols | 5G, Wi-Fi, LoRa, Starlink | 5G, MARS, LoRa, Starlink |
| Max Transmission Range | Unlimited (5G) / 40 km (LoRa) | Unlimited (5G) / 40 km (MARS and LoRa) |
| EO Zoom & Resolution | 35x / 21 MP | 35x / 21 MP |
| Thermal Sensor | FLIR Boson 640 x 512 px | FLIR Boson 640 x 512 px |
| Flight time | 70 min | 70 min |
| Max Flight Distance | 40 km at 14 m/s airspeed | 40 km at 14 m/s airspeed |
| Mass (w/ battery inserted) | 1,356 g with XLR battery | 1,356 g with XLR battery |
| Maximum take-off mass (MTOM) | 1,450 g | 1,450 g |
| Battery Type | XLR Smart Battery | XLR Smart Battery |
| Capacity | 20,200 mAh (XLR Smart Battery) | 20,200 mAh (XLR Smart Battery) |
| Charging Time with the USB-PD (Power Delivery) charger included in the pack | 5h 15mins | 5h 15mins |
| IP53 certified | Yes | Yes |
| Encryption | AES 256 (Packet & Radio) | AES 256 (Packet & Radio) |
In the Box
ANAFI UKR XLR pack contains:
- 1 ANAFI UKR aircraft
- 1 Skycontroller UKR ground control station
- 1 ANAFI UKR Simulator and FlightCharts Live USB key
- 1 landing pad*
- 1 XLR smart battery
- 1 XLR smart battery interface
- 1 USB-PD charger
- 1 USB-A/USB-C cable (1 m)
- 2 USB-C/USB-C cables (0.5 m)
- 1 gimbal protection cover
- 1 hard case
*Subject to configuration
