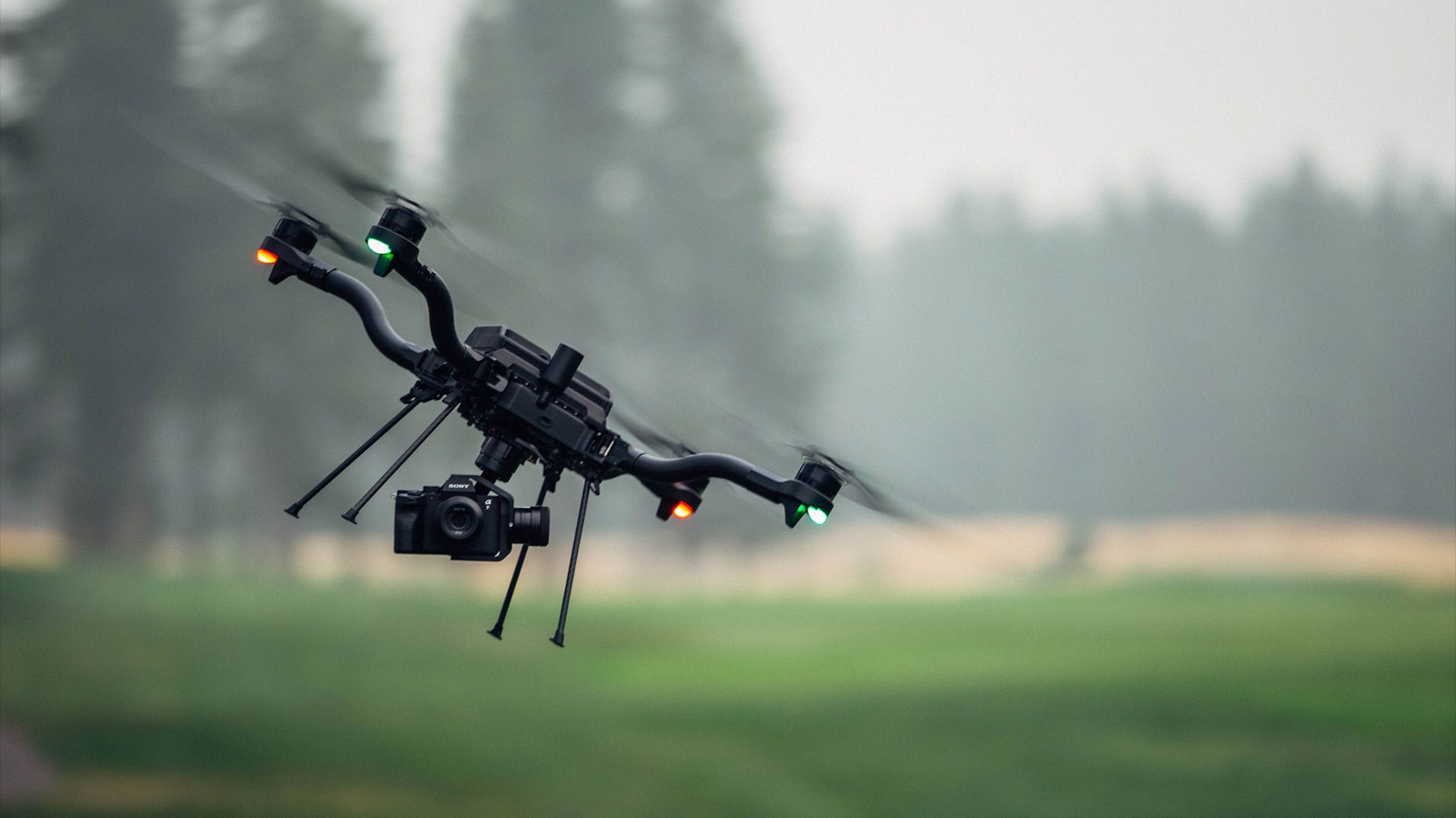

Astro
Professional Industrial Drone Platform
The Ultimate Compact Industrial Platform for Mapping and Inspection.
The Astro was built to power professional and industrial partners by achieving the perfect blend of efficiency, agility, and reliability while keeping the pilot workflow simple and fast. Built on the success of the legendary Alta family, it integrates cutting-edge Auterion Skynode intelligence with Freefly’s high-energy-density power systems.
Up to ~28+ minutes flight time with typical payloads (varies by configuration)
Efficient 21″ props for extended endurance and low noise footprint
LTE connectivity, mission computer, AuterionOS software ecosystem
Precision & Control
Astro’s flight and positioning systems are built for accuracy and mission repeatability.
- High-performance flight controller with Auterion Enterprise PX4 software
- RTK-capable GNSS for centimetre-level positioning (with optional base station)
- Fine-tuned flight dynamics and motor acceleration for optimal sensor operation
- LTE connectivity and cloud integration for remote mission management
Control & Pilot Interface

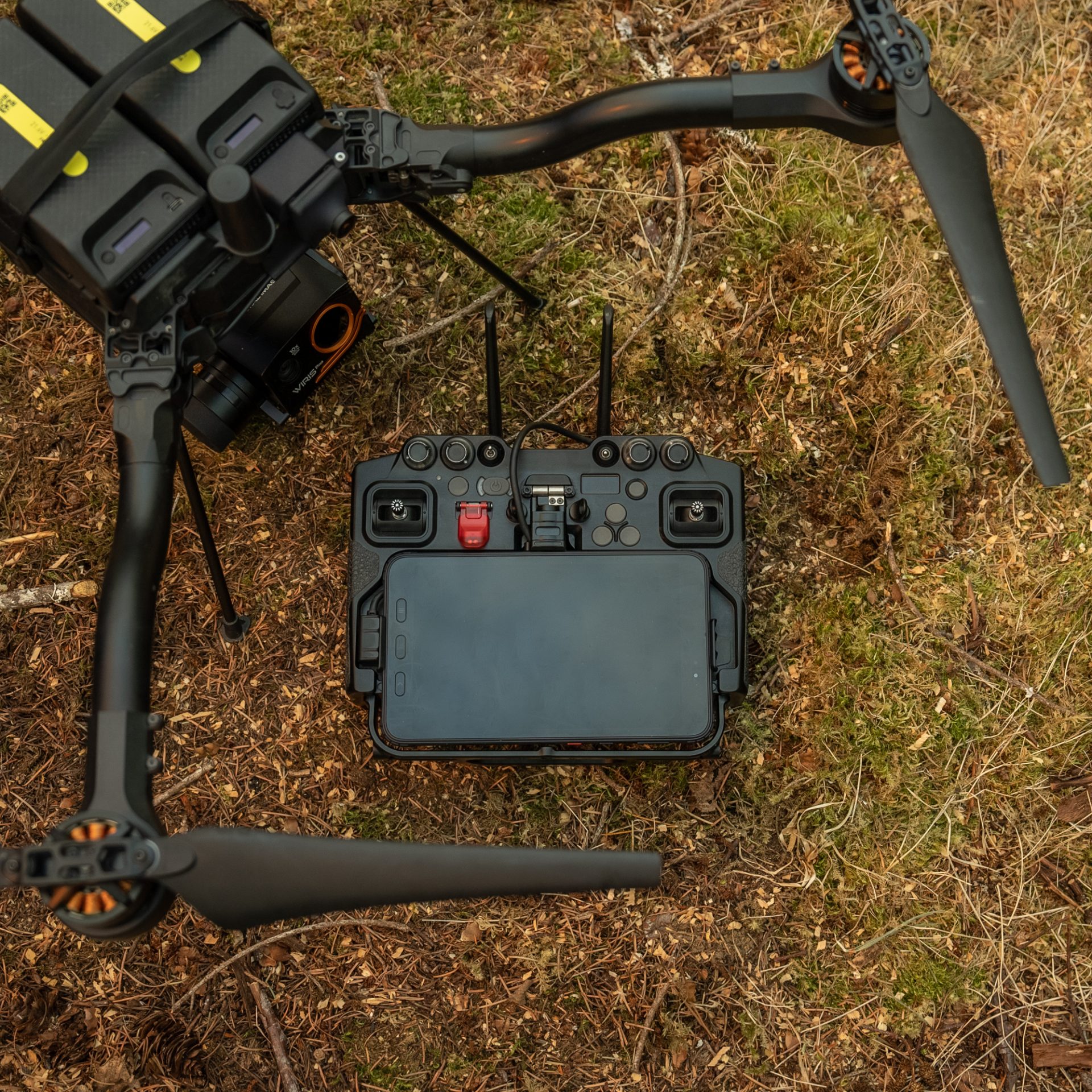

Pilot Pro Controller
- Industrial-grade ergonomic controller with long runtime and precise gimbals
- Direct control of aircraft and payload systems for professional missions
Astro also supports other compatible enterprise controllers via Auterion interfaces for advanced workflows.
Precision control, simple integration.
With the integrated quick-release system, you can mount your payloads on the top (Skyview) or bottom (Groundview) of the airframe. Whether you’re inspecting bridge undersides or filming the horizon, the Alta X adapts to your mission.
MAPPING | Sony LR1
61MP imagery for detailed mapping and inspection

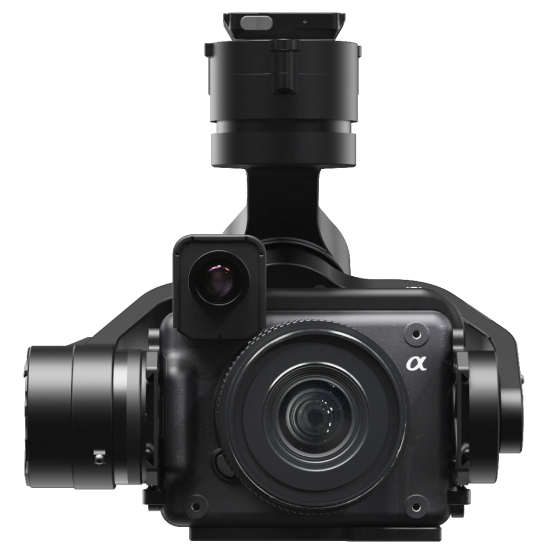

THERMAL | Sony LR1 + Thermal
Thermal, zoom, and wide cameras for aerial insight

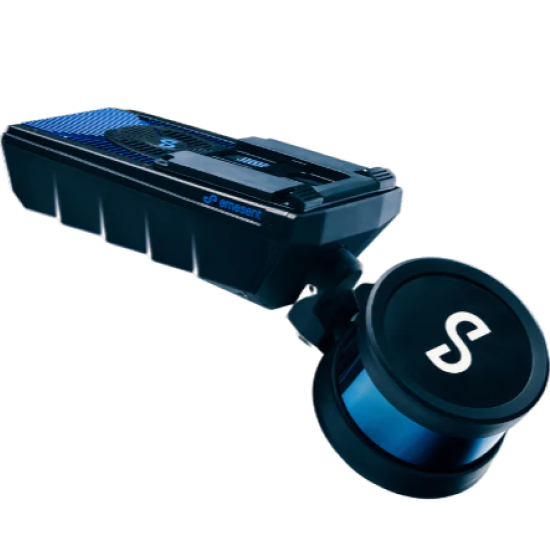

LIDAR | Emesent Hovermap
LiDAR + autonomy for GPS-denied environments
Blue UAS & NDAA Compliant
Security is a requirement, not an option. The Astro is Blue UAS listed and NDAA compliant, making it the trusted choice for government, defense, and high-security industrial programs.
- Made in the USA: Designed, assembled, and supported by a dedicated US-based engineering team.
- Open Architecture: We share CAD files, test specs, and engineering documents to help you integrate and succeed faster.
Payload Performance
| Payload Configuration | Payload Weight | Flight Time |
|---|---|---|
| No Payload (Endurance) | 0 kg (0 lb) | 37 Minutes |
| Sony LR1 (61MP Mapping) | 1.5 kg (3.3 lb) | 25 Minutes |
Engineering Excellence
Weather Sealed
Designed to withstand the rigours of professional use in challenging environments.
Adjustable Vibration Isolation
Included as standard to ensure ultra-clean data capture even at high speeds.
RTK/PPK Ready
Centimeter-level accuracy for survey-grade mapping and photogrammetry missions.
Rapid Deployment
Featuring 21-inch folding blades and folding landing gear for a fast case-to-air transition.
Long Range Data Link
Stay connected with a robust, low-latency link for real-time situational awareness.
