Alta X
The world’s toughest drone
Freefly Alta X: Industrial Workhorse
The world’s toughest, most versatile heavy-lift drone. Engineered for high-end cinema and industrial-grade LiDAR missions.
15.9kg Payload Capacity
Built to carry the heaviest sensors and cinema rigs on the market without compromising flight stability.
50-Minute Flight Time
Unmatched efficiency. Fly longer, capture more data, and reduce battery-swap downtime in the field.
ActiveBlade Technology
Industry-first 33-inch blades that reduce vibration to 1/5th the normal level for ultra-smooth data.
Rapid Deployment

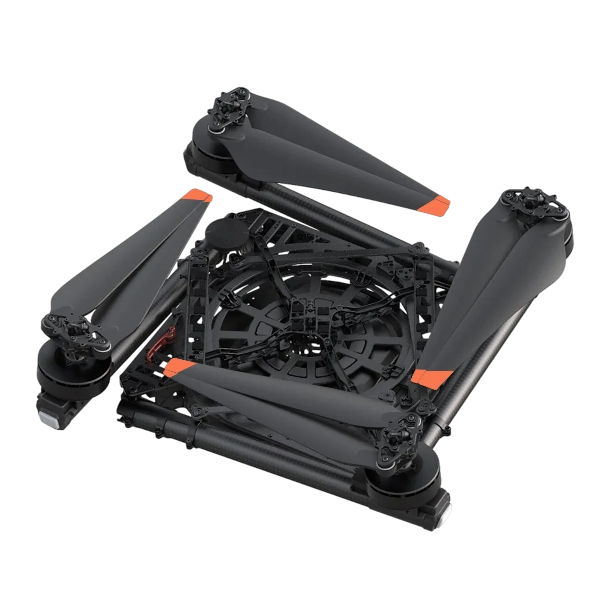

The Alta X folds to half its size in seconds with "one-finger folding." It fits in the same case as the smaller Alta 8, making it the most portable heavy-lift aircraft in its class.
Unmatched Versatility.
With the integrated quick-release system, you can mount your payloads on the top (Skyview) or bottom (Groundview) of the airframe. Whether you’re inspecting bridge undersides or filming the horizon, the Alta X adapts to your mission.
Top Mounting
Bottom Mounting
Med-Tele Mode
Designed, assembled, and supported in the USA, the Alta X is built to withstand the rigours of professional use. With an IP43-equivalent weather rating and a flight-tested operating range of -20°C to +50°C, this aircraft is ready to work whenever—and wherever—you are.
- ActiveBlade Tech: 1/5th the vibration of standard heavy-lifts for cleaner data.
- American Innovation: Trusted by "Blue UAS" and NDAA-compliant programs.
Payload vs. Flight Time
| Payload Weight | Example Sensor | Flight Time |
|---|---|---|
| 0 kg | Empty | 50 Minutes |
| 4.5 kg (10lb) | High-End Mapping Cam | 33 Minutes |
| 9.0 kg (20lb) | Phoenix LiDAR / Mōvi Carbon | 22 Minutes |
| 15.9 kg (35lb) | Max Heavy-Lift Rig | 11 Minutes |
Built for Precision Integration
The Alta X is the ultimate open-architecture carrier, designed to fly the world’s most advanced sensors with unmatched stability and endurance.
LiDAR
Take your aerial surveying to the next level. The Alta X allows you to fly elite LiDAR sensors—originally engineered for full-sized helicopters—for over 30 minutes of continuous data capture.
Mapping Camera
Tracking performance has been enhanced to balance speed, agility, and safety. In open areas, the maximum tracking speed has been raised to 15 m/s[9]for quicker response. In complex environments, the drone can switch to rear tracking mode, steadily keeping the subject in focus and enabling creative freedom with confidence.

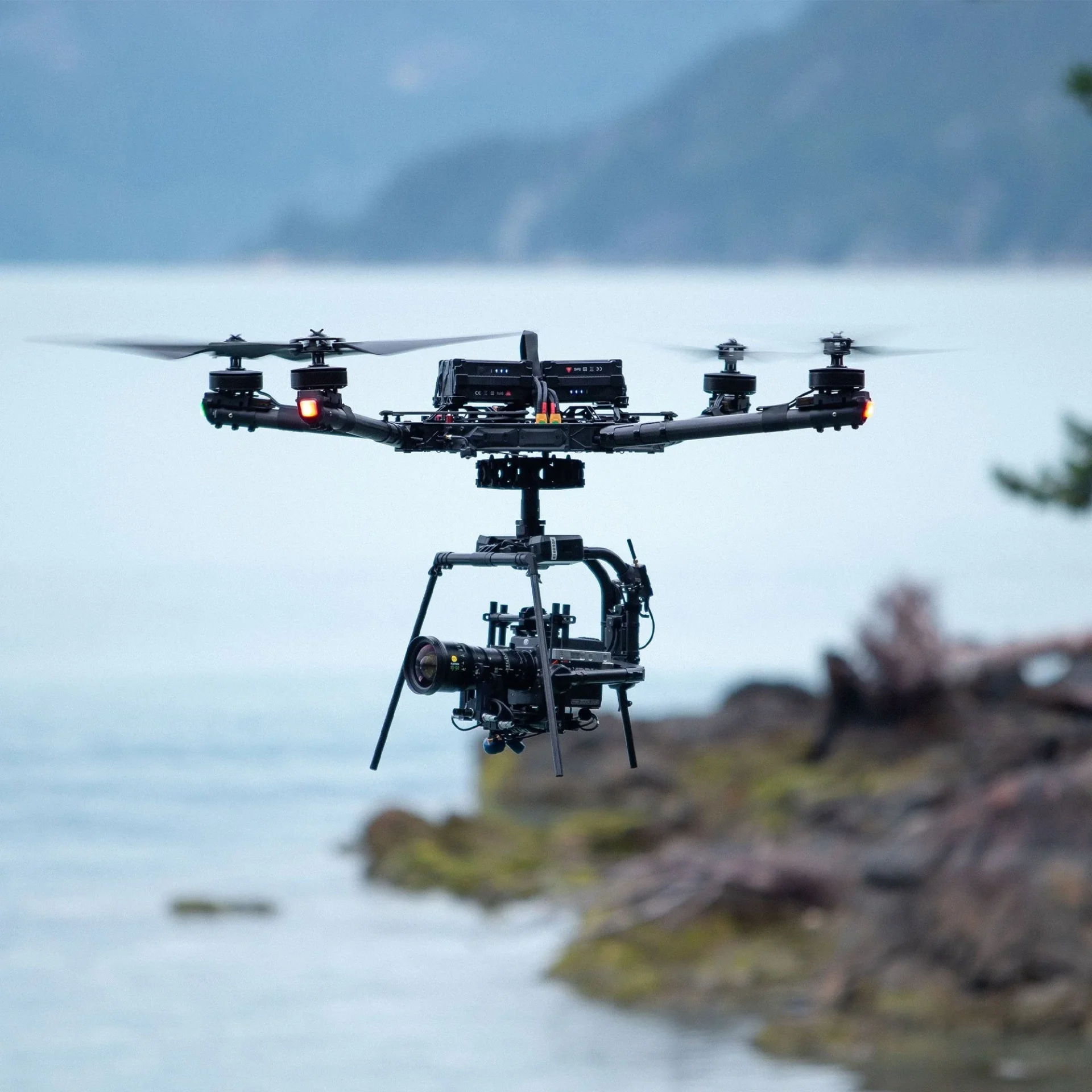

Mōvi Carbon
Capture perfectly stable, long-lens imagery even at 240mm. Experience the power of the Mōvi Carbon gimbal with reliable 20-minute flight windows.
High Speed Camera
Push the boundaries of frame rates. The Alta X offers seamless integration for the Phantom Veo, allowing you to capture 4K at 1000FPS with the agility of a drone.
LED
ransform your set with aerial illumination. Lift heavy-duty LED lighting rigs and maintain high-output cinema light for over 20 minutes per flight.
"Finally a drone without compromise. The ALTA X delivers boatloads of power with the same responsiveness as previous platforms."
— Pat Weir, Peacemaker Filmworks
